How To Set Up Stacked Monitors Ergonomically: New Guide

Set up stacked monitors by placing the primary screen so the top line of text sits at or just below eye level, about 20–28 inches (50–70 cm) away, tilted back 10–15 degrees. Mount the secondary screen above, 12–20 degrees down-tilted toward you, used less often. Keep elbows at 90 degrees and sit upright.

Why Stack Monitors? Real Benefits

A vertical dual monitor setup can boost focus and cut head turning. Your main work stays front and center. Reference windows sit above and out of the way, yet still easy to see. This can reduce clutter and help deep work.



Stacking also frees side space on a narrow desk. If you use large speakers or a mic arm, a vertical layout can fit better. With a good monitor arm, you can dial in height and tilt for both screens.



For certain jobs, stacked screens support a natural reading flow. Think code below, logs above. Or timeline below, preview above. Your eyes move up and down, which is often easier than lots of side-to-side head turns.

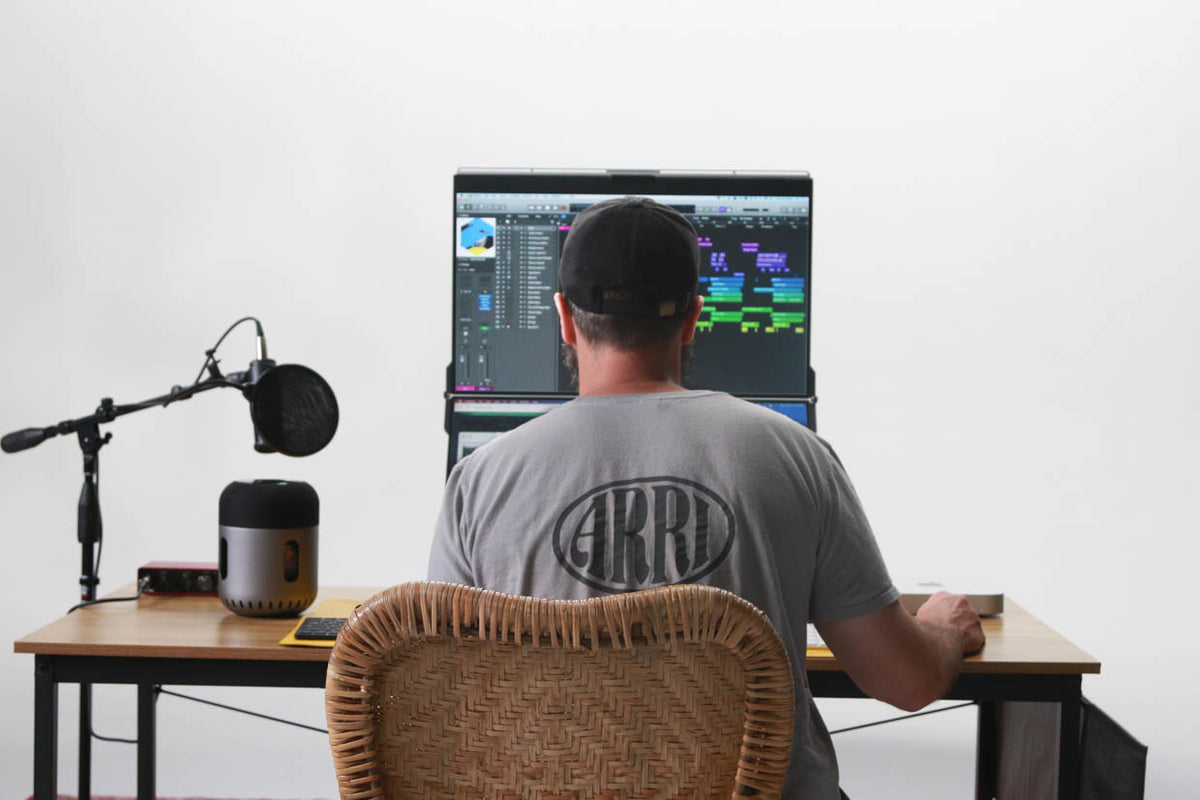

Who Should Use Stacked Monitors

• Developers who keep code on the primary screen and docs or logs above.




• Designers and video editors who want a preview or bins above the canvas.




• Analysts who compare dashboards or sheets without shrinking windows.




• Streamers who keep chat/controls above the game or main tool.




• Anyone with a narrow desk who cannot fit a side-by-side setup.




When Stacked Monitors Are Not Recommended

If you wear progressive lenses, a high upper screen can force awkward chin tilt. This can strain your neck. A side-by-side layout may be easier to align with your lens zones.

If you need to view both screens all day at equal rates, stacked may be tiring. A constant up-down gaze can add eye fatigue. In that case, two same-size screens side-by-side, centered, may be better.

Step-by-Step Setup Instructions

A good ergonomic desk setup starts with your body. Adjust your chair, then your desk, then your screens. Fit the gear to you, not the other way around. Small changes matter.

1. Set chair and posture first

• Sit back in the chair with lumbar support in your lower back.
• Feet flat on the floor or on a footrest. Knees at about 90 degrees.
• Shoulders relaxed. Elbows at 90–100 degrees over the keyboard and mouse.

2. Dial in desk height

• Desk or keyboard height should match your elbow height when seated.
• Typical desk height is 28–30 inches (71–76 cm), but adjust for your body.
• If you cannot change desk height, raise your chair and add a footrest.

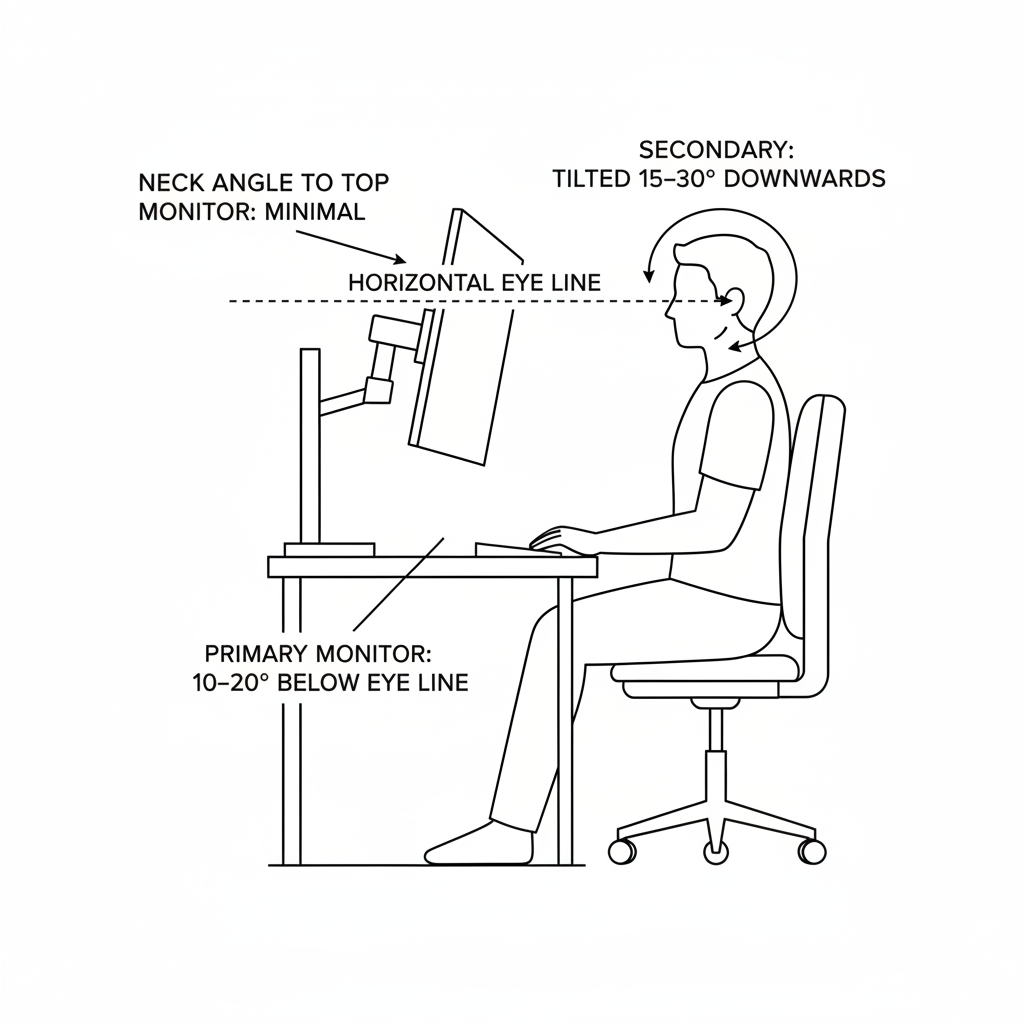

3. Place the primary (lower) monitor

• Stacked monitor height for the primary screen: the top line of text should sit at or slightly below eye level. Aim for 0–2 inches (0–5 cm) below.
• Center the screen with your nose. Do not offset it.
• Viewing distance: 20–28 inches (50–70 cm). Larger screens often feel best at 24–30 inches (60–76 cm).
• Monitor tilt angle: tilt the lower screen back 10–15 degrees. This keeps the screen perpendicular to your line of sight.

4. Mount the secondary (upper) monitor

• The upper screen should sit above the primary with its bottom edge about 1–2 inches (2.5–5 cm) above the top edge of the primary. Keep the gap small to limit eye travel.
• Tilt the upper screen down 12–20 degrees toward your eyes. This reduces neck extension.
• Use the upper monitor for secondary views: email, chat, preview, references. Do not place your main task here.

5. Fine-tune horizontal alignment

• Align both screens so their centers form a vertical line with your nose.
• Avoid offsetting the lower screen. If you must offset, keep it within 15 degrees to one side.

6. Size and scaling

• If the upper screen is larger, increase text scaling so fonts match size on both screens. This reduces eye strain during quick glances.
• Keep both at similar brightness and color temperature to reduce visual fatigue.

7. Use a quality monitor arm

• A strong dual monitor arm lets you set precise height, distance, and tilt. It also reduces desk clutter. Make sure it supports your screens’ weight.
• If your desk is shallow, choose a wall mount or a low-profile arm to hit the 20–28 inch distance.

8. Keyboard, mouse, and input devices

• Keep the keyboard centered to the primary screen and your body.
• Place the mouse close and level with the keyboard to avoid reaching.
• Consider a split keyboard or wrist rest if you feel forearm strain.

9. Glare and lighting

• Place screens perpendicular to windows when possible.
• Use blinds or a lamp with a soft diffuser. Avoid overhead glare on the upper screen.
• Enable dark mode or light themes based on room light. Keep contrast high and glare low.

10. Validate the setup with your body

• Look at the lower screen: your gaze should drop slightly (about 15 degrees) without your neck bending.
• Look at the upper screen: your eyes should move first, then a small nod. You should not feel a strong chin lift.
• If your neck tightens in 10 minutes, lower the upper screen or tilt it down more.

Common Ergonomic Mistakes to Avoid

• Placing the primary screen too low. This drives neck flexion and pain. Keep the top line of text at or slightly below eye level.
• Using the upper screen as your main workspace. This forces constant chin lift. Use it only for quick glances.
• Large gap between screens. Big gaps force extra eye and neck travel. Keep them close.
• Ignoring viewing distance. Too close magnifies eye strain. Too far causes slouching. Aim for 20–28 inches.
• Poor cable or arm management. Loose arms sag and drift. Tighten joints and routes cables to avoid tug.

How to Prevent Neck and Eye Strain

Use the 20-20-20 rule: every 20 minutes, look 20 feet away for 20 seconds. This relaxes your eye muscles. It helps most when using a vertical dual monitor setup.

Blink often and use drops if needed. Dry eyes burn and blur. Lower brightness at night and match room light. Consider 4,000–5,000K warm light late in the day.

Keep shoulders down and relaxed. If your wrists ache, raise the chair and use a footrest. If your neck aches, lower the upper screen, add more down-tilt, or use the lower screen more often.

If you wear progressive lenses, lower the primary screen slightly more. Keep text large. Place your most-used content on the lower screen.

Stacked vs Side-by-Side Monitors (Ergonomic Perspective)

• Neck and head movement: Stacked reduces side-to-side head turns. It adds some up-down eye motion. For short glances, stacked wins. For equal dual-monitor use, side-by-side is easier.
• Desk width: Stacked saves width. If your desk is narrow, it is a smart pick. Side-by-side needs more space.
• Lens and vision needs: Progressive lens users may prefer side-by-side. Stacked can force chin lift.
• Task type: For one primary task and quick reference, stacked is ideal. For two heavy tasks at once, side-by-side offers a larger primary zone.

FAQ

Q1: What is the best stacked monitor height for the upper screen?
A: Keep the upper screen as low as you can while leaving a small gap above the primary. Down-tilt it 12–20 degrees. You should glance up with your eyes first. If you must lift your chin, it is too high.

Q2: How far should I sit from stacked monitors?
A: Most people do best at 20–28 inches (50–70 cm). Bigger screens work better a bit farther back, around 24–30 inches (60–76 cm). Your eyes should relax, not strain to focus.

Q3: What monitor tilt angle should I use?
A: For the lower screen, tilt back 10–15 degrees. For the upper screen, tilt down 12–20 degrees. The goal is to keep each screen perpendicular to your line of sight.

Q4: Can I stack different size monitors?
A: Yes. Center the lower screen with your body. Match text size with scaling so letter height looks equal on both screens. Keep the upper screen used for reference only.

Q5: Do I need a monitor arm for a vertical dual monitor setup?
A: You can use stacked stands, but a dual monitor arm is best. Arms let you fine-tune height, distance, and tilt. Make sure the arm supports the weight and size of your monitors.

Q6: Will stacked monitors cause neck strain?
A: They can if set wrong. Keep the primary at eye level or slightly below. Use the top screen for quick glances only. Add proper down-tilt on the upper screen and keep the gap small.

Q7: How high should my desk be?
A: Set desk or keyboard height to match your elbow height when you sit with relaxed shoulders. If the desk is fixed, raise your chair and use a footrest for support.

Ergonomic Checklist (Do This Today)

• Chair: Hips back, lumbar supported, feet flat or on a footrest.
• Elbows: 90–100 degrees; shoulders relaxed.
• Desk: Keyboard at elbow height; mouse close and level.
• Primary monitor: Top line of text at or slightly below eye level; 20–28 inches away; tilt back 10–15 degrees; centered with your nose.
• Secondary monitor: Mounted just above the primary with a small gap; down-tilt 12–20 degrees; used for reference, not primary work.
• Alignment: Both screens in a straight vertical line with your body.
• Lighting: No glare; matched brightness and color temperature.
• Breaks: 20-20-20 rule; blink often; stretch neck and shoulders.
• Hardware: Sturdy dual monitor arm; cables secured; joints tightened.
• Reassess: If you feel neck strain, lower the upper screen or increase its down-tilt; if eyes strain, adjust distance, scaling, or brightness.
