Ergonomic Desk Setup Diagram With Correct Posture

Align screen at eye level, elbows at 90°, feet flat, back supported.

If you have ever ended a workday with a tight neck or sore wrists, this guide is for you. I’ve set up hundreds of workstations. In this deep but simple walkthrough, I break down the Ergonomic desk setup diagram with correct posture so you can work in comfort and focus longer. We will turn best practices into clear steps you can use today.

Source: com.au

What the diagram shows and why it matters

An ergonomic office setup diagram with correct posture shows how each body part lines up with your tools. It maps your eyes, neck, shoulders, elbows, wrists, hips, knees, and feet. It also places your chair, desk, monitor, keyboard, and mouse.

Key targets most experts agree on:

• Head and neck: Neutral, chin tucked, ears over shoulders.
• Eyes: Top of the screen at or slightly below eye level. Distance about an arm’s length.
• Shoulders: Relaxed, not raised.
• Elbows: Close to the body at 90–110 degrees.
• Wrists and hands: Straight and level with forearms.
• Back: Supported with a slight recline of 95–110 degrees and lumbar support at your low back.
• Hips and knees: 90–110 degrees, thighs level or slightly down.
• Feet: Flat on the floor or on a footrest.
• Lighting: Soft, even light. Aim to reduce glare and harsh contrast.

Done well, an Ergonomic desk setup diagram with correct posture can cut strain, boost focus, and lower injury risk. This is not a one-time fix. It is a set of positions you tune over time.

Step-by-step setup with the diagram

Use this simple order. It works at home and in the office.

1. Set your chair height. Sit so your hips and knees are near 90–100 degrees. Your feet should rest flat.
2. Set seat depth. Leave two to three fingers between the seat edge and the back of your knees.
3. Place lumbar support. It should meet the small of your back. Keep a slight recline.
4. Match desk height to elbow height. When you relax your shoulders, forearms should be level with the desk.
5. Ergonomic keyboard mouse position diagram. Keep it close. Use a slight negative tilt so wrists stay straight.
6. Keyboard mouse ergonomic position diagram place the mouse next to the keyboard. Same height. Keep movements small and close to your body.
7. Set monitor height. The top line of text should sit at or a bit below eye level.
8. Set monitor distance. Aim for 20–28 inches, about an arm’s length.
9. Manage light. Put the screen at a right angle to windows. Add a task light for documents.
10. Test and tweak. Type for five minutes. Notice any pinch or reach. Adjust by millimeters.

Each step aligns with an ergonomic workstation desk setup diagram. Small changes add up. Take your time.

Source: alignedorthotherapy.com

Fine-tuning for your body and vision

Bodies differ. So should setups.

• If you are petite: Raise the chair for elbow height, then add a footrest.
• If you are tall: Raise desk or use a keyboard tray. Use a monitor arm to get eye level right.
• Broad shoulders: Widen armrests or drop them to avoid flare and tension.
• History of wrist pain: Use a flat keyboard with light keys. Keep wrists floating, not pressing down.
• Bifocals or progressives: Lower the monitor a bit to avoid chin tilt. Increase text size before raising the screen.

An ergonomics diagram is a guide. Fit the guide to your build and your tasks.

Source: esseg.eu

Sitting and standing the right way

A sit-stand desk helps, but only if you set it right.

• In standing mode: Keep elbows at 90–100 degrees. Screen still at or just below eye level.
• Use an anti-fatigue mat. Wear soft, supportive shoes.
• Shift weight often. Try small heel raises and toe taps.
• Swap often. A helpful pattern is 20 minutes sitting, 8 minutes standing, 2 minutes moving.

Use the same standing desk ergonomics diagram for both positions. Only the desk height changes.

Source: hamiltonisbusiness.com

Common mistakes I see and quick fixes

After years of audits, these errors show up again and again.

• Monitor too high: Lowers your chin and drops shoulder tension. Fix by lowering the screen.
• Chair too low: Causes shoulder shrug and wrist bend. Raise the chair and add a footrest.
• Reaching for the mouse: Leads to shoulder burn. Pull the mouse close and keep it level.
• Bent wrists on a wrist rest: Keep wrists straight and float the hands while typing.
• Feet dangling: Add a footrest. Do not perch the toes.
• Laptop on a desk: Raises hands too high and screen too low. Use a laptop stand plus external keyboard and mouse.
• Armrests jammed into the desk: Drop or move them back so you can sit close.

Each fix brings you back to the Ergonomic desk setup diagram with correct posture. Check one point at a time.

Source: autonomous.ai

Helpful accessories and when to use them

Tools can make the setup easier and more stable.

• Monitor arm: Sets exact height and distance with ease, ergonomic monitor height eye level diagram.

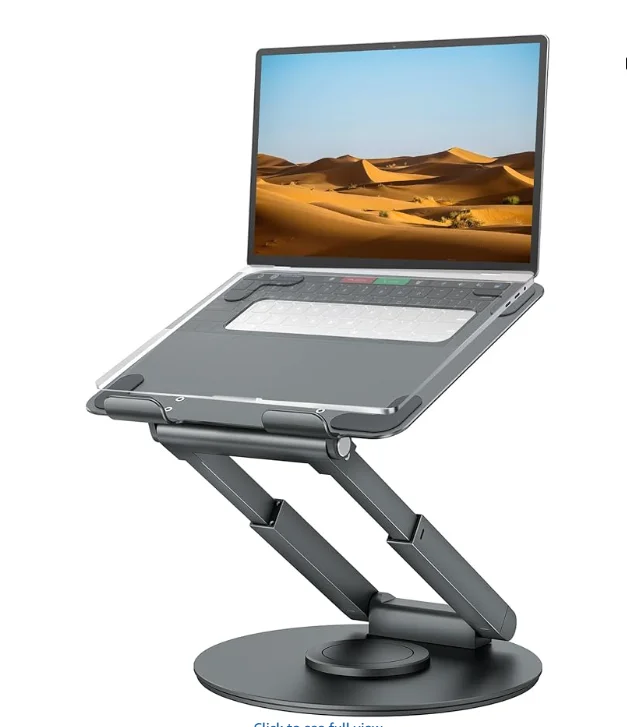

• Laptop stand: Lifts the screen to eye level.
• External keyboard and mouse: Keeps wrists neutral and close.
• Footrest: Supports short legs or higher chairs.
• Lumbar pillow: Fills the curve if your chair lacks support.
• Task light: Aimed at papers to reduce screen glare.
• Document holder: Keeps text at the same height as the screen.

Choose only what you need. The goal is to lock in the ergonomic desk set up diagram, not to add clutter.

Daily micro-habits and simple stretches

Good posture is a living habit, not a frozen pose.

• Follow the 20-20-20 eye rule. Every 20 minutes, look 20 feet away for 20 seconds.
• Take micro-breaks. Stand, roll shoulders, and shake hands for 30 seconds.
• Do light moves. Chin nods, neck side glides, shoulder blade squeezes, and forearm stretches.
• Breathe low and slow. It helps relax the neck and jaw.

These habits keep the Ergonomic desk setup diagram with correct posture working for you all day.

Source: mayoclinic.org

A printable checklist you can use today

Use this fast list to set up any space.

• Chair height matches elbow height when arms rest at your sides.
• Lumbar support meets the low back curve.
• Knees and hips near 90–100 degrees. Feet fully supported.
• Keyboard and mouse close, level, and at the same height.
• Monitor top at or just below eye level. Distance about an arm’s length.
• Screen free of glare. Task light for paper.
• Cables managed so nothing pulls you out of place.

Print the Ergonomic desk setup diagram with correct posture and mark it. Take a photo of your setup. Compare and adjust until your space matches the diagram.

Source: co.uk

What the science says and what it cannot do

Studies link good workstation fit to lower neck, shoulder, and wrist pain. They also show gains in comfort and small boosts in focus and speed. Training plus gear changes works better than gear alone.

Still, an Ergonomic desk setup diagram with correct posture is not a cure for all pain. Movement breaks, sleep, and fitness matter too. If pain lasts, talk with a clinician.

Frequently Asked Questions of Ergonomic desk setup diagram with correct posture

What is the fastest way to improve my setup today?

Raise or lower your chair so elbows are at desk height. Then adjust the monitor top to eye level and pull the keyboard close.

How far should my monitor be from my eyes?

Keep it about an arm’s length, or 20–28 inches. If you lean forward to read, increase text size before moving the screen closer.

Do I need a fancy chair to get good posture?

No. You need height adjust, a firm backrest, and some lumbar support. A simple chair works if you match it to the desk ergonomics diagram.

Are wrist rests good or bad?

They are fine for brief pauses, not for typing. Keep wrists straight and float your hands over the keys.

How often should I stand at a sit-stand desk?

Rotate through sitting, standing, and short walks. A common pattern is 20 minutes sit, 8 minutes stand, 2 minutes move.

Can I make a laptop ergonomic without extra gear?

It is hard. You need a laptop stand with an external keyboard and mouse to match the Ergonomic desk setup diagram with correct posture.

What if my feet do not touch the floor?

Use a footrest or a small box. Your feet should rest flat to support your back.

Conclusion

You do not need a new office to feel better at your desk. Small, clear steps can turn strain into ease. Use the ergonomic desk position diagram, adjust one point at a time, and let comfort guide you. Take five minutes now to raise the chair, center the screen, and pull tools close. Then build the habit with short breaks and simple moves. Want more tools and checklists? Subscribe, share your setup wins, or leave a question and I’ll help you dial it in.
